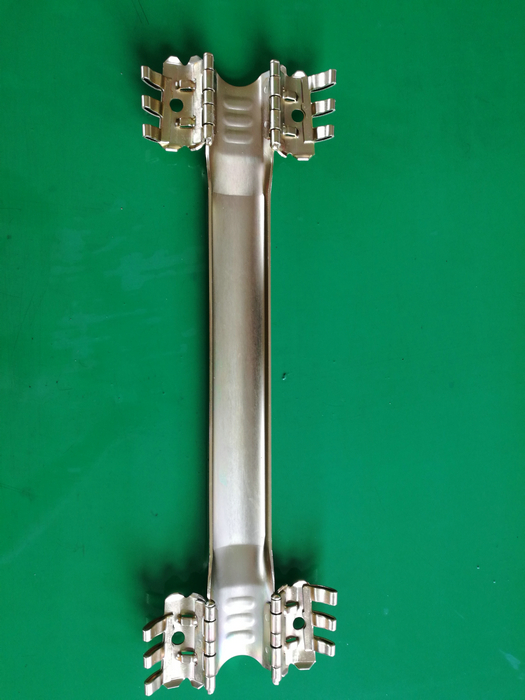

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use
ESP Cable Protector Brief Introduction
UNITOOLS is a professional producer for ESP cables, Control line and Encapsulated bundles protector .
Our protector use channels to shield cables and lines when they across coupling to prevent damage during installation or retrieval of completions
| Features | | | |
| 1. All CNPS cable protectors have double protection to resist corrosion. |
| 2. All hinges are spot-welded to enhance the overall integrity of the product. |
| 3. Spring friction pad gripping system for superior grip. |
| 4. Slip and rotation resistant. |
| 5. Non-destructive gripping action. |
| 6. Designed to eliminate compression-reduced damages to the conductors. |
ESP Cable Protector Application
• ESP cable
• Subsurface safety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing
ESP Cable Protector Features
A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.
B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
Except that It will increase Pulling force ,because of the friction pads .
C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered
D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin . Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .
ESP Cable Protector Standard Size Chart
