Single Channel ESP Cable Protectors Non Destructive Gripping Action

Single Channel ESP Cable Protectors Non Destructive Gripping Action

ESP Cable Protectors Features:

All hinges are spot-welded to enhance the overall integrity of the product
Spring friction pad gripping system for superior grip
Slip and rotation resistant
Non-destructive gripping action
Designed to eliminate compression-reduced damages to the conductors

ESP Cable Protector Application

• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing

ESP Cable Protector Features

A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
    Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.

B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
    Except that It will increase Pulling force ,because of the friction pads .

C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered

D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin .           Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .

ESP Cable Protector Standard Size Chart

steel cable protector

cross coupling clamps

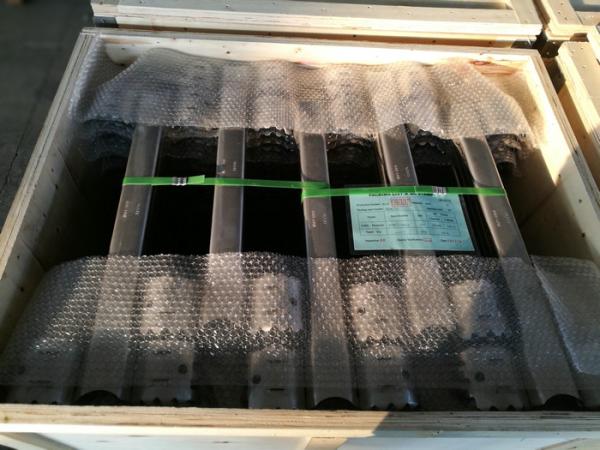

Single Channel ESP Cable Protectors Non Destructive Gripping Action Images
